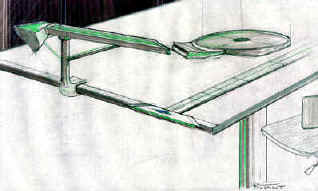

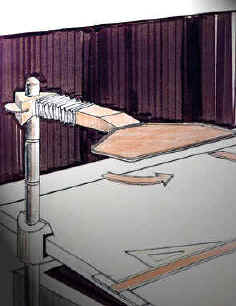

Back in the days when manual drafting teqniques were common these concepts seemed useful.  the problem of working with all the various drafting and drawing instruments is resolved with these drafting aids.  These products were never produced and probably would not have as wide spread a use today. These concepts are dated back to 1984.
